Inicio /Productos/Inversor trifásico/Three Phase Vector Control AC 220v Series CE Series AC 220v Inverter 1.5kw 5kw 10v Solar Pumping Hybrid Solar Inverter

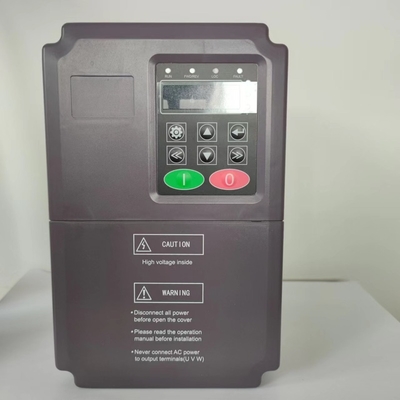

Three Phase Vector Control AC 220v Series CE Series AC 220v Inverter 1.5kw 5kw 10v Solar Pumping Hybrid Solar Inverter

1 piece
MOQ
$95.00(>=1 pieces)
Precio
Three Phase Vector Control AC 220v Series CE Series AC 220v Inverter 1.5kw 5kw 10v Solar Pumping Hybrid Solar Inverter
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Features: Vector control
Model Number: QB600
Input Voltage: 250-800v
Output Voltage: 440v, 0-400V
Output Current: 9a
Output Frequency: 50-60hz
Output Type: Single, Triple
Size: 410*310*280mm
Type: DC/DC Converters, DC/AC Inverters
Inverter Efficiency: 95%
Certificate: CE
Warranty: 180 months, 18Month
Weight: 7.4kgs
Display: Digital
application: industry
Información básica
Certificación: CE
Model Number: QB600
Pago y Envío Términos
Supply Ability: 10000 Acre/Acres per Month
Descripción de producto
Product Description
Product Description
Brand
ADVANCE TOGETHER
Type
DC/AC Inverters
Output Type
Single/Triple
Output Voltage
0-400V
Output Frequency
50/60HZ
Certificate
other
Warranty
18Month
Display
Digital
Features
Vector control
application
industry

AC Drive Model
Power Capacity (kVA)
Input Current (A)
Output Current (A)
Adaptabl Motor (kW)
Three-phase 380 V, 50/60 Hz
3300-0R7G-4
1.5
3.4
2.1
0.75
3300-1R5G-4
3
5
3.8
1. 5
3300-2R2G-4
4
5.8
5.1
2.2
3300-004G-4
5.9
10.5
9
4
3300-5R5G-4
8.9
14.6
13
5.5
3300-7R5G-4
11
20.5
17
7.5
3300-011G-4
17
26
25
11
3300-015G-4
21
35
32
15
3300-018G-4
24
38.5
37
18.5
3300-022G-4
30
46.5
45
22
3300-030G-4
40
62
60
30
3300-037G-4
57
76
75
37
3300-045G-4
69
92
91
45
3300-055G-4
85
113
112
55
3300-075G-4
114
157
150
75
3300-090G-4
134
180
176
90
Item
Specifications










Standard functions
Maximum frequency
• Vector control: 0–300 Hz
• V/F control: 0–320 Hz

Carrier frequency
0.5–16 kHz
The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution
Digital setting: 0.01 Hz
Analog setting: maximum frequency x 0.025%

Control mode
• Sensorless flux vector control (SFVC)
• Closed-loop vector control (CLVC)
• Voltage/Frequency (V/F) control

Startup torque
• G type: 0.5 Hz/150% (SFVC); 0 Hz/180% (CLVC)
• P type: 0.5 Hz/100%
Speed range
1:100 (SFVC)
1:1000 (CLVC)
Speed stability accuracy
• ± 0.5% (SFVC)
• ± 0.02% (CLVC)
Torque control accuracy
± 5% (CLVC)
