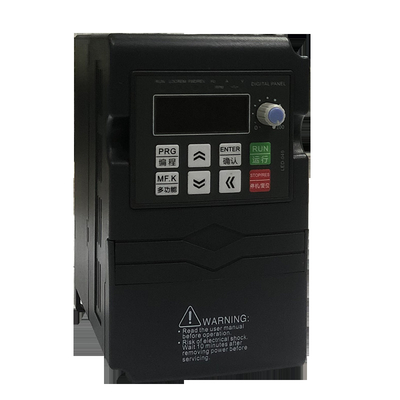

Mini Inverter 220V 380V 3 phase output frequency converter 50hz 60hz VFD DFL5800-5005

Basic technical indicators High frequency vector control: 0-500.0Hz； V/F control: 0-1000.0Hz； Carrier frequency: 0.5KHz-16KHz, can automatically adjust the carrier frequency according to the temperature, output frequency resolution: ∂.01Hz Control mode: open loop vector control (SC) closed loop vector control (FVC) V/F control Starting torque: G type machine 0.5Hz150% (SVC) 0Hz180% (FVC Speed stability accuracy: ±0.5%(SVC) ±0.2%(FVC) Overload capacity: G type machine 150% rated current 60S; P type machine 120% rated current 60S Torque boost: automatic torque boost, manual torque boost 0.1%-30% V/F curve: three ways linear multi-point N-th power V/F curve (12th power, 14th power, 16th power, 18th power, 2nd power) V/F separation: 2 ways: full separation, half separation Deceleration curve: linear or S-curve acceleration and deceleration mode, four acceleration and deceleration times, acceleration and deceleration time range 0.0~6500.0S DC braking: braking frequency: 0.00Hz~maximum frequency, braking time: 0.0~36.0S, braking current: 0.0%~100.0% Built-in PID: It is convenient to realize the process closed-loop control system. Simple PLC, multi-speed operation, through the built-in PLC or external control terminal Achieve 16-speed operation at most special function Automatic voltage adjustment function (AVR): When the external grid voltage changes, it can automatically maintain a constant output voltage Fast current limiting function: minimize over-current faults and protect the inverter from normal operation Built-in RS485 communication interface: support standard MODBUS-RTU protocol to realize system integration or interconnection Common DC bus function: multiple inverters can share the DC bus function Overvoltage and overcurrent stall control: Automatically limit voltage and current during operation to prevent frequent overcurrent and overvoltage trips Quick limit and torque control: According to the working characteristics of the excavator, its torque is automatically limited during operation to prevent frequent over-current tripping Vector control mode can realize torque control Timing control: Timing control function setting time range: 0~65535h Safety self-inspection of peripheral equipment after power-on: it can realize the safety detection of peripheral equipment, such as grounding and short circuit. M key function: programmable key, command channel switching, forward and reverse running, jog running function selection MoDE key: menu mode selection, basic menu, monitoring menu, advanced menu, calibration menu, user-defined menu Textile swing frequency control: multiple triangle wave frequency control functions

Dongguan Quanpu Electric Technology Co., Ltd. is a professional manufacturer specializing in R&D, production and sales of motor drives and automation systems. The company was established in 2007, and then in 2011 the manufacturing department moved to Dongguan, which is known as the world's manufacturing factory, and Dongguan Quanpu Electric Technology Co., Ltd. was established at the same time. Now the company is adjacent to the highland of R&D and innovation, Songshan Lake High-tech Industrial Park. It has a R&D team with 15 years of industry experience. It can provide special, high-performance, cost-effective inverter integrated machine solutions according to customer requirements. It has Danflei DFL, Quanpu has two product trademarks and a R&D-leading high-tech enterprise with more than 20 national utility model patents. Dongguan Quanpu Electric Technology Co., Ltd. (DFL) is committed to the research and development of products in the field of industrial automation and motor drive control. Since 2007, five series of more than 100 varieties have been developed and produced: 1. VF series dedicated bare-machine, general-purpose frequency converter series, the products range from HJ01, HJ02-HJ09 up to 20 kinds of special general-purpose frequency converters. The special machines involve terminal machines, gate machines, water pumps, constant pressure water supply, engraving machines, and barriers. , Wire cutting, ice cream refrigerator, fan constant temperature, glove machine, flat knitting machine and many other fields; 2. 5800 series high-performance dedicated, general-purpose current vector inverters, non-inductive synchronous motor drives; general-purpose series cover power 0.4KW-400KW grade inverters, special series cover high-performance constant pressure water supply special, engraving machine special, hoist special, Special for large door machine; 3. 1000 series general-purpose servo, special AC servo motor for fast door and special drive series for electric punching press; general-purpose servo drives for 60, 80, 90, 110, 130 motors; special-purpose mainly covers 80, 90, 110, 130 series door machines Special motor and special drive, special drive electric control box; Fourth, 57, 86 stepping driver DM542, DMA860H series; 5. The i-PS1000 series of inverters for solar inverter water supply based on the field of new energy; Products are widely used in injection molding machinery, wire harness processing equipment, engraving machines, fast doors, knitting machinery, CNC machine tools, non-standard machinery and equipment, smart barriers, printing machinery, constant temperature fans, constant pressure water pumps, packaging machinery, automatic assembly lines, industrial robots And many other industries. The company takes craftsmanship, science and technology as the forerunner concept, continuous innovation, continuous refinement and pragmatic product design concept, to provide customers with high cost-effective, high reliability, high intelligence, high user experience and the most satisfactory service. Continuously understand customer needs, continue to track customer development, continue to learn from customers, and improve product satisfaction through service. With its own key technology and research as the core, it pays attention to technical details and user experience, easy for users to use and simple to maintain; it produces well-known products in the subdivision of the industry and builds a well-known brand in the industry. Leading technology, excellent products, perfect product chain, perfect service and good reputation are the company's unswerving pursuit. With the increasing development of science and technology today, our company will adhere to the corporate tenet of "exquisite technology as the guide and high-quality products as the foundation", and carry forward the enterprise spirit of "innovative and enterprising, pragmatic and truth-seeking" to create a brilliant tomorrow.

1. who are we?
We are based in Guangdong, China, start from 2012,sell to Domestic Market(70.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Frequency converter,Single-phase output inverter,Constant pressure water supply inverter,General purpose inverter,Fast rolling door inverter

4. why should you buy from us not from other suppliers?
Manufacturer of motor drive and automation system research and development, production and sales. It has a R&D team with 15 years of industry experience; a R&D-led high-tech enterprise with more than 20 national utility model patents.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
